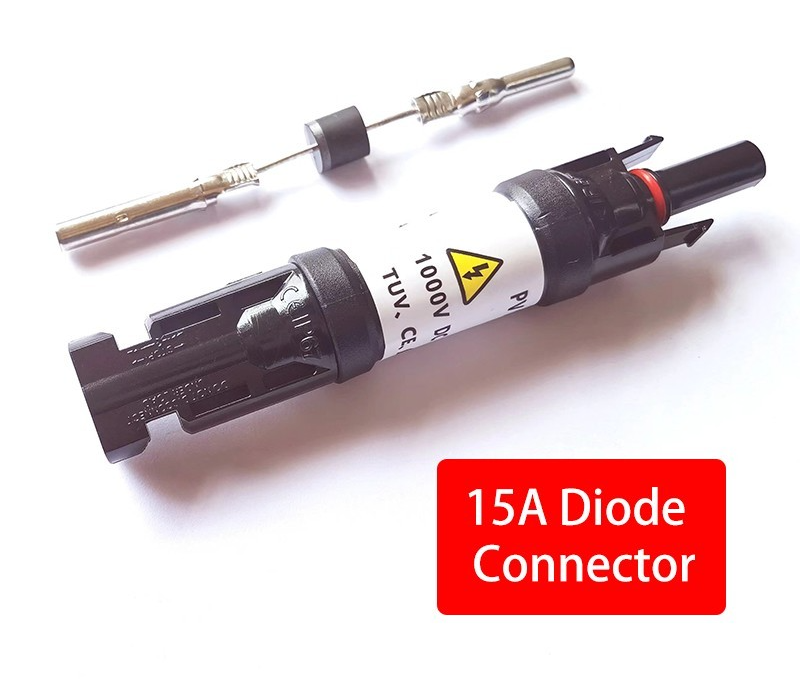

15A Solar Panel Blocking Diode Connector – IP67 Waterproof Inline PV Connector
Protect your solar photovoltaic installation with this 15A Solar Panel Blocking Diode Connector, designed for use in compatible DC solar power systems. Featuring an inline diode, waterproof construction and a secure auto-locking connection, this compact connector provides a practical solution for managing current flow within suitable solar PV installations.
Designed for outdoor environments, the connector features an IP67 protection rating, helping protect the electrical connection against dust and temporary water immersion when correctly installed and fully connected.
Its convenient plug-in design makes it suitable for compatible solar panel connections, photovoltaic wiring and other appropriate DC solar applications.
What Is a Solar Panel Blocking Diode Connector?
A solar panel blocking diode connector is an electrical component designed to allow current to flow in one direction while restricting reverse current flow.
In certain solar power installations, reverse current can occur when the voltage of a connected power source exceeds that of the solar panel.
A correctly selected blocking diode can help prevent unwanted reverse current from flowing through the protected circuit.
Typical applications may include:
- Solar photovoltaic panel connections.
- Compatible off-grid solar power systems.
- Solar battery charging arrangements.
- Small solar generation installations.
- Solar panel wiring and maintenance.
- Suitable DC renewable energy projects.
Important: Many modern solar charge controllers already incorporate reverse-current protection. An additional blocking diode may not be necessary in every installation.
Reliable Inline Diode Protection
The integrated blocking diode provides a convenient method of introducing one-way current control into a compatible solar PV circuit.
Unlike a standard solar connector, this component contains a diode that restricts current flow in the reverse direction.
Correct installation orientation is essential to ensure the diode operates as intended.
The connector must also be selected according to the electrical requirements of the installation, including operating voltage, maximum current and expected environmental conditions.
IP67 Waterproof and Dust-Resistant Construction
Designed for outdoor electrical applications, this solar PV diode connector features an IP67-rated enclosure.
When correctly connected and installed, the protection rating provides:
- Dust Protection: Helps prevent dust entering the connector.
- Water Resistance: Protection against temporary immersion under specified test conditions.
- Outdoor Suitability: Designed for appropriately installed outdoor solar applications.
- Secure Connection: Helps maintain a reliable electrical connection in suitable operating conditions.
The connector should always be properly engaged and secured to maintain its intended environmental protection.
Secure Auto-Locking Connection
The connector incorporates an auto-locking mechanism designed to provide a secure connection between compatible solar PV components.
Its plug-in construction offers several practical advantages:
- Convenient connection and disconnection.
- Secure locking mechanism.
- Compact inline installation.
- Suitable for compatible solar wiring arrangements.
- Practical replacement or maintenance component.
The connector uses a nominal 4.0mm contact system. Compatibility with existing connectors should be verified before installation.
Durable Electrical Contacts
The connector features copper contacts with a tin-plated finish, designed to provide reliable electrical conductivity.
Its construction includes materials intended for use in electrical environments where resistance to temperature changes, moisture and general outdoor conditions is important.
The manufacturer specifies an operating temperature range of approximately -40°C to +90°C.
Actual operating suitability depends on the installation, electrical loading and surrounding environmental conditions.
Key Features
- 15A Blocking Diode Connector: Designed for compatible solar PV circuits.
- One-Way Current Control: Helps restrict unwanted reverse current.
- IP67 Protection Rating: Dust-tight and resistant to temporary water immersion when correctly connected.
- Inline Design: Convenient for compatible solar panel wiring.
- Auto-Locking Mechanism: Provides a secure plug-in connection.
- Copper Contacts: Tin-plated contacts for electrical conductivity.
- 1000V DC Connector Rating: Manufacturer-stated connector voltage rating.
- Wide Temperature Range: Specified for -40°C to +90°C environments.
- Compact Construction: Suitable for appropriately designed solar installations.
- Outdoor Applications: Designed for compatible photovoltaic systems.
Product Specifications
| Specification | Details |
|---|---|
| Product Type | Solar PV Blocking Diode Connector |
| Connector Style | Inline Solar Connector |
| Diode Rating | 15A (advertised variant) |
| Rated Connector Voltage | 1000V DC |
| Test Voltage | 6kV (50Hz, 1 minute) |
| Contact Material | Copper |
| Contact Finish | Tin-Plated |
| Contact Resistance | Less Than 0.5mΩ |
| Protection Rating | IP67 |
| Pollution Degree | 2 |
| Protection Class | Class II |
| Flame Retardancy | UL94 V-0 |
| Connector Pin Size | 4.0mm |
| Connection Type | Auto-Locking |
| Plug Force | Less Than 50N |
| Withdrawal Force | Greater Than 50N |
| Operating Temperature | -40°C to +90°C |
| Application | Compatible DC Solar PV Systems |
| Quantity | 1 Connector |
Package Contents
1 × 15A Solar Panel Blocking Diode Connector
Solar panels, cables and additional installation accessories are not included.
Important Installation Information
Before installing this solar panel blocking diode connector, ensure that its electrical specifications are appropriate for the intended solar PV system.
Please consider the following:
- Confirm the diode’s maximum continuous current rating.
- Check the maximum reverse-voltage rating of the diode.
- Verify compatibility with the existing solar connectors.
- Ensure the diode is installed in the correct direction.
- Allow for voltage drop and heat generated by the diode during operation.
- Never connect or disconnect solar PV connectors under electrical load.
- Follow the relevant electrical safety requirements and installation guidance.
The connector’s advertised 1000V DC rating does not necessarily mean the internal blocking diode is suitable for 1000V reverse voltage. The diode’s individual electrical ratings must be verified separately.
Solar PV installations can generate hazardous DC voltages. Installation should be carried out by a suitably competent person.
A Practical Component for Solar PV Installations
Whether you’re maintaining an existing solar power installation, replacing a compatible connector or assembling a suitable DC solar circuit, this solar panel blocking diode connector provides a convenient inline solution for applications requiring one-way current control.
Combining a compact design, secure auto-locking connection and IP67-rated construction, it offers a practical component for appropriately specified solar photovoltaic systems.
